Application:
Cut foam materials (pearl cotton, EVA, sponge, insulation cotton, etc.) into pieces as needed.
Feature:
1. Automatic knife sharpening system can adjust 16 sharpening angles to ensure the precise cutting materials;
2. Independent control of cutting and sharpening;
3. Automatic straight cutting machine PLC programmable control, adjustable cutting width through touch screen, a variety of cutting modes being set freely, adjustable cutting speed;
4. There are short circuit, phase loss and overload protection in the whole machine;
5. Simple operation, low failure rate and fast cutting speed;
Parameters:

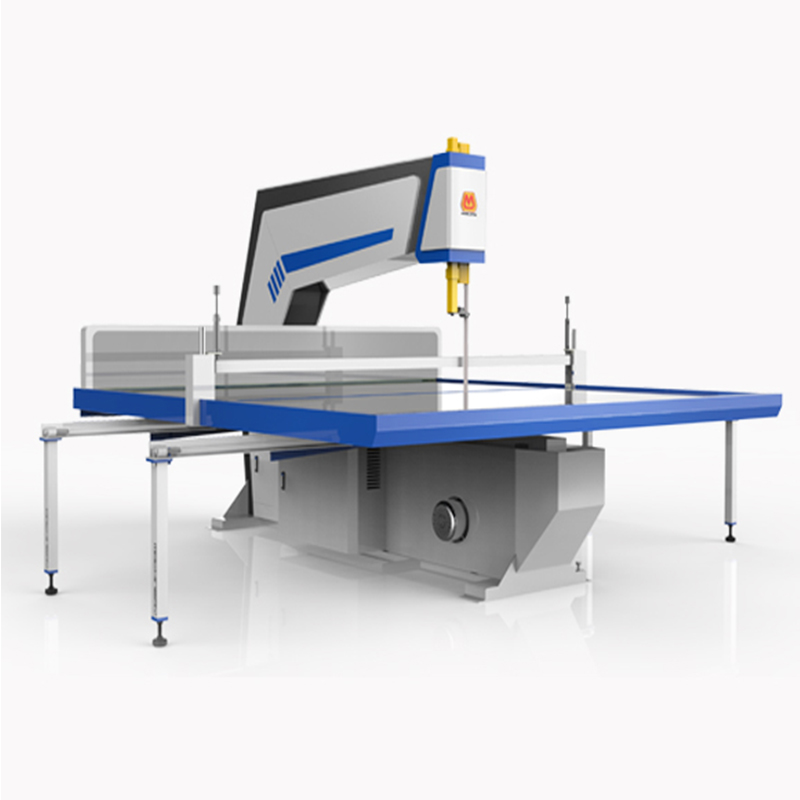

| Model | ML-6980 Automatic Straight Cutting Machine | ML-6620 Four-wheel Straight Cutting Machine | ML-4210 Double Wheel Straight Cutting Machine |
| Inner workbench(W and L mm) | 1400*1800 | 1200*2400 | 480*1200 |
| Cuttable width and length of the inner workbench(mm) | 1200*1300 | 1150*2200 | 380*1000 |
| External workbench(W and L mm) | 1200*1800 | 1200*2400 | 1200*1200 |
| Cuttable width and length of the external workbench(mm) | 1200*1300 | 1200*2200 | 1200*1000 |
| Baffle height(mm) | 300 | 300 | 200 |
| Cuttable height(mm) | 600 | 600 | 400 |
| Dimensions(L,W and H mm) | 3400*3000*1950 | 4000*2800*1950 | 2000*2100*1720 |
| Weight(KG) | 850 | 600 | 320 |
| Total power | 3KW | 1.68KW | 1.68KW |
| Required air pressure | 0.4-0.8MPA | No N/A | No N/A |
| Voltage | Three phase 380V+1N | Three phase 380V+1N | Three phase 380V+1N |
| Required wire | 4*2.52+1*1.52 | 3*2.52 | 3*2.52 |
Above parameters are subject to actual product, and all interpretation rights are owned by Maolong Machinery.
